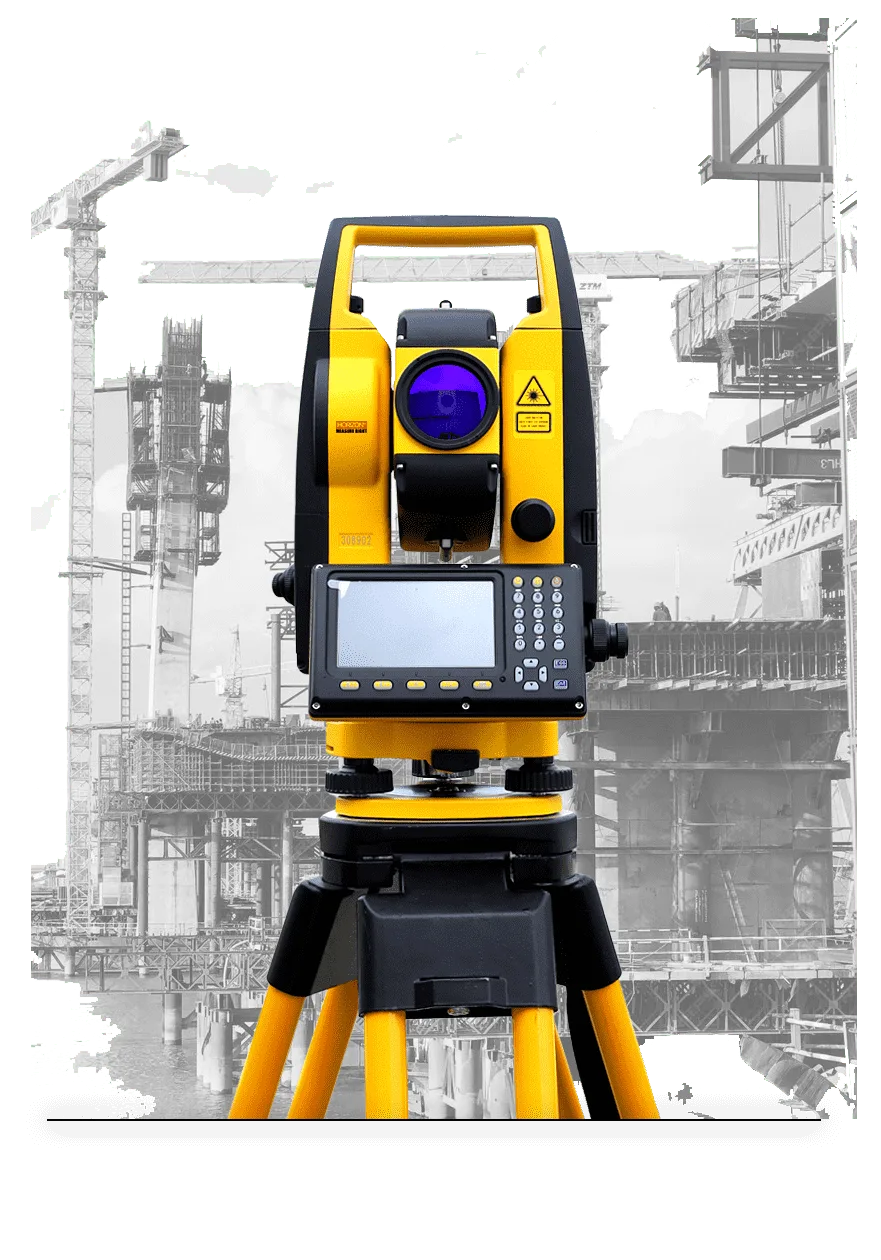

HORIZON H90+

Upgraded CPU, enhanced optics, and optimized hardware for superior precision and performance.

The Horizon H90+ Total Station is engineered for precision, efficiency, and ease of use. Equipped with a new-generation EDM, a high-resolution color display, and intuitive, user-friendly software, it delivers outstanding performance. With a reflectorless measurement range of up to 1500m, the H90+ ensures reliable results in diverse surveying environments.

Key features:

Reflector less measurement range 1500m
Available in 1” and 2”
Dual axis, Liquid Compensation
New processor with improved speed and performance
Dual keyboard and Colourful Touch screen
New and Complete user-friendly software
New robust body material
Support USB, Flash memory, Bluetooth, RS232
Automatic temperature and pressure sensors
Equipped with Trigger key

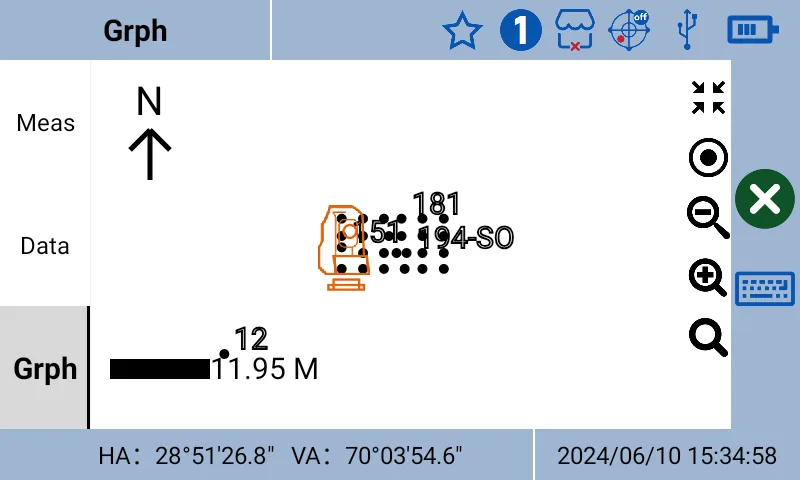

Enhanced graphics for viewing location plans after each measure.

New EDM Technology

The Horizon H90+ utilizes new-generation EDM technology, offering an extended measurement range with enhanced stability and accuracy. It can achieve up to 1500m in reflectorless mode and 5000m with a prism, ensuring precise and reliable results in various field conditions.
Triple Prism:5000m
Single Prism:3000m
Without Prism:1500m
Sheet:800m

Export Data Easily

The Horizon H90+ Total Station offers multiple data export options, including Bluetooth, USB flash drive, and Mini USB/RS232 cable, ensuring seamless data transfer. This allows users to easily share data with smartphones, archive it, or transfer it to a PC. With these advanced connectivity features, the H90+ is the perfect tool for surveyors, engineers, and construction professionals who require precision, efficiency, and reliability in their workflow.

Easy To use

The Horizon H90+ Total Station comes with an all-new, user-friendly software designed to enhance surveying efficiency. With an intuitive interface, it simplifies station setup, measurement execution, and data processing. Key features include graphical point and line plotting, stakeout point and road functions, a complete COGO menu, and a traverse option, enabling professionals to work with greater precision and productivity.

New and Enhanced CPU processor unit

Improved Optical Parts for higher precision

New Hardware for performance optimization

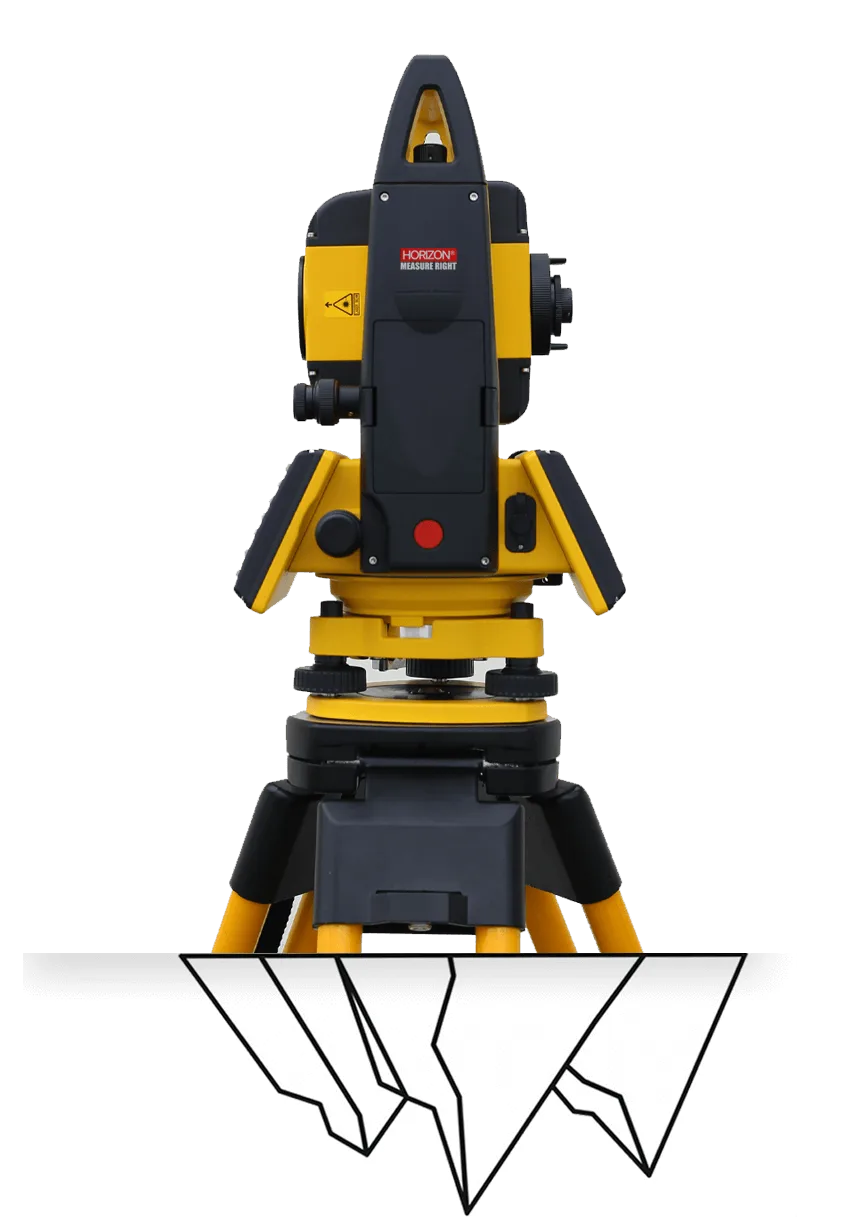

New upgrade H90+ Total station

Reliable and high performance

The H90+ is a high-precision Total Station with 1” and 2” accuracy, a new EDM generation, and an enhanced CPU for superior performance. Its dual-screen colour display ensures clear visibility under sunlight, while the redesigned keyboard and intuitive software provide seamless operation. With fast data collection via a trigger key and multiple export options (USB, Bluetooth, mini USB, SD card, and mobile transfer), the H90+ is built for efficiency. Perfect for surveyors and engineers, it delivers exceptional accuracy and reliability for any project.

High Accuracy & Long-Range Laser

Achieve high accuracy and long-range measurements up to 1500m with the Horizon H90+. Designed for surveyors, engineers, and construction professionals, this advanced instrument ensures precision and reliability in every project.

Angle Accuracy

With 1"/2" angle accuracy, the Horizon H90+ ensures precise measurements using dual compensator and absolute encoding technologies, making it a reliable choice for professionals.

Trigger Key

The trigger key enables faster data collection and measurement, making the H90+ ideal for topographic surveys and other precision-driven projects.

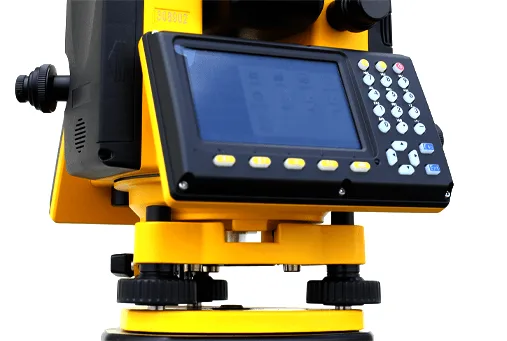

Dual large screen Keyboard

Featuring a dual-screen, high-visibility color display, the H90K is designed for clear readability even under direct sunlight. Its new design enhances usability and ensures high performance with easy maintenance.

ATMO Sensor

The auto sensor for temperature and air pressure detects the ambient temperature and pressure, calculates the PPM value, and adjusts the distance measurement results in real-time for optimal accuracy.

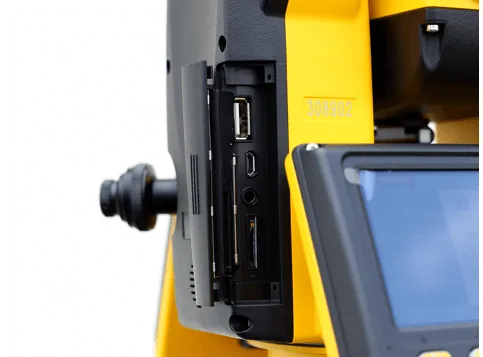

Connectivity and Export data

Equipped with multiple data export options, including USB flash, Bluetooth, mini USB, and SD card, the H90+ allows seamless data transfer. Export data on the spot using your mobile and send it directly to your

Extraordinary Graphical
Software

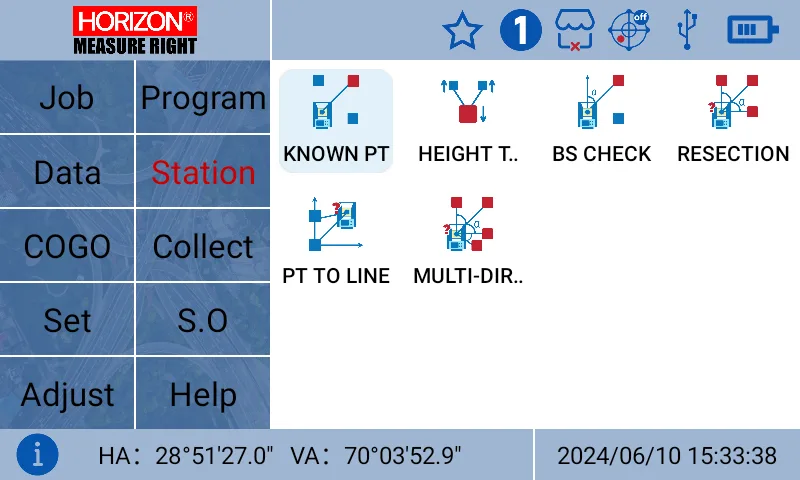

Station Setup:

Known Point
Resection
Point To Line
Multidirectional
Bs Check
Height Transfer

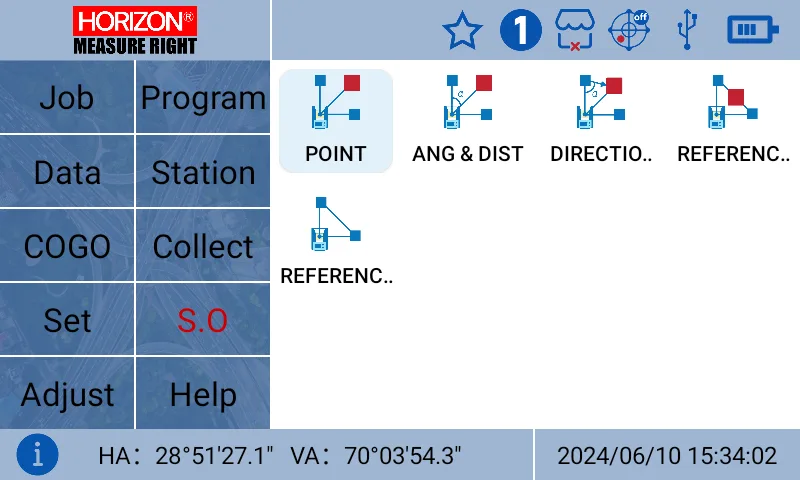

StakeOut:

Pt Stake out
Ang & Dist SO
Direction Line
Reference PT
Reference Line

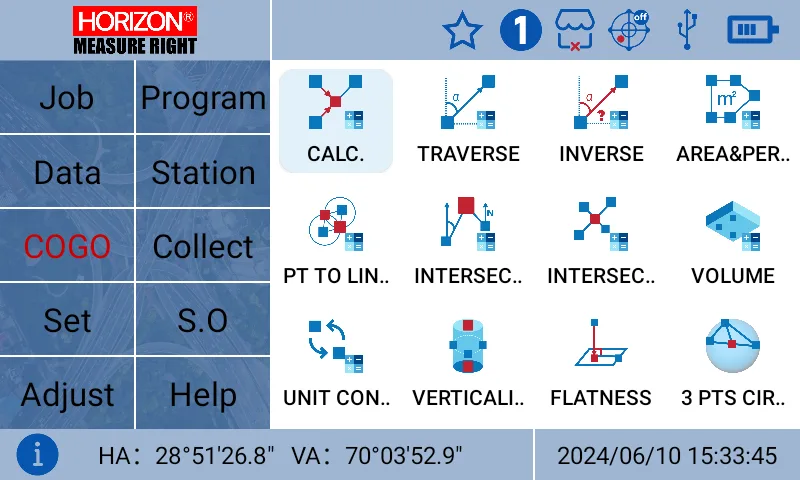

Cogo:

Calculator
Traverse
Inverse
Area & Perimeter
PT to Line
Intersection by 2 PT
Intersection by 4 PT
Volume
Unit Convert
Verticality
Flatness
3 PT Circle
