TRITON H20
Multi Beam and Hydrographic Survey System
1024 lines Multi Beam | UHF and Ntrip RTK | Obstacle avoidance | 360-degree camera
TRITON H20
Professional 3D Bathymetry Survey

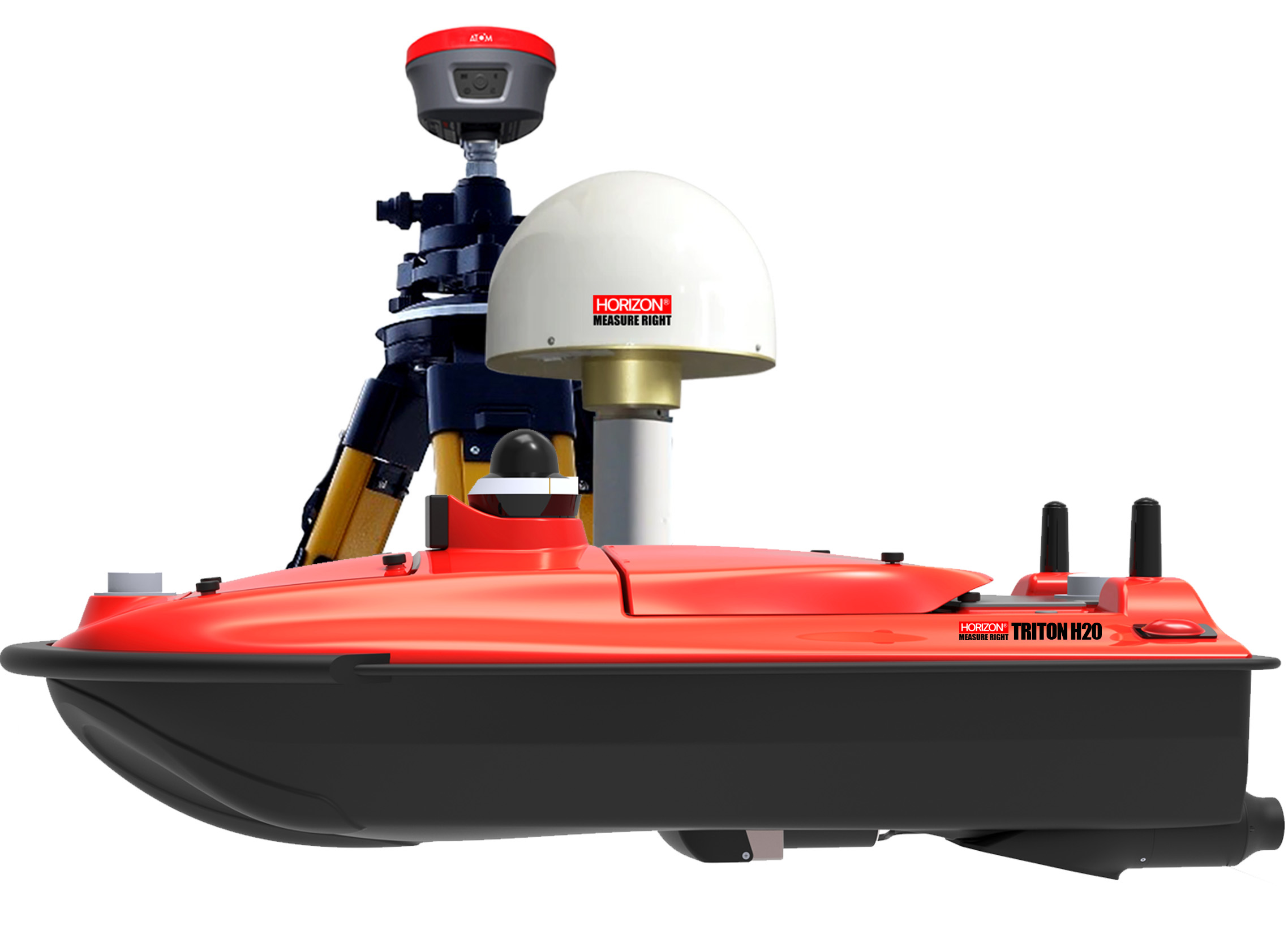

The TRITON H20 is a robust autonomous USV designed for hydrographic surveying, bathymetric mapping, and marine inspection. Its unique M-shaped hull design provides exceptional stability in rough water and harsh operating conditions. Equipped with protected dual motors to prevent damage from debris and floating objects, the TRITON H20 delivers reliable performance, efficient navigation, and accurate survey results for demanding marine environments.
Key Features:
The TRITON H20 is a high-performance USV designed for demanding marine surveys, delivering advanced payload capability, strong stability, and precise navigation for reliable results in complex offshore environments.
Safety First
TRITON H20 features an intelligent obstacle avoidance system with obstacle detection and tracking. Built-in fail-safe functions, including shallow-water protection and automatic communication-loss response, ensure safe and reliable operation, enabling the USV to return to its home position with high accuracy.
Smart Positioning and Navigations
TRITON H20 features an autopilot system with GPS navigation, live telemetry, motion sensor, and dual GNSS antennas. RTK positioning is supported via UHF radio or CORS network for enhanced accuracy and can be integrated with any RTK GNSS receiver without brand limitations.
Design for highest Stability
TRITON H20 features an M-shaped hull design and dual debris-resistant motors, providing excellent stability in waves and windy conditions. The motor system is designed for easy maintenance, allowing quick access for cleaning debris, weeds, or ropes that may become entangled, helping to improve reliability motor lifespan
The TRITON H20 is a heavy-duty USV designed for advanced hydrographic surveying and offshore data collection. It supports high-end payloads including Multibeam Echo Sounder (MBES), Dual-Frequency Echo Sounder, ADCP, and Side Scan Sonar.
With a stable, reinforced platform and high-precision autonomous navigation, it delivers reliable performance and accurate data in demanding marine environments. Ideal for dredging, seabed mapping, offshore construction, and large-scale survey missions.

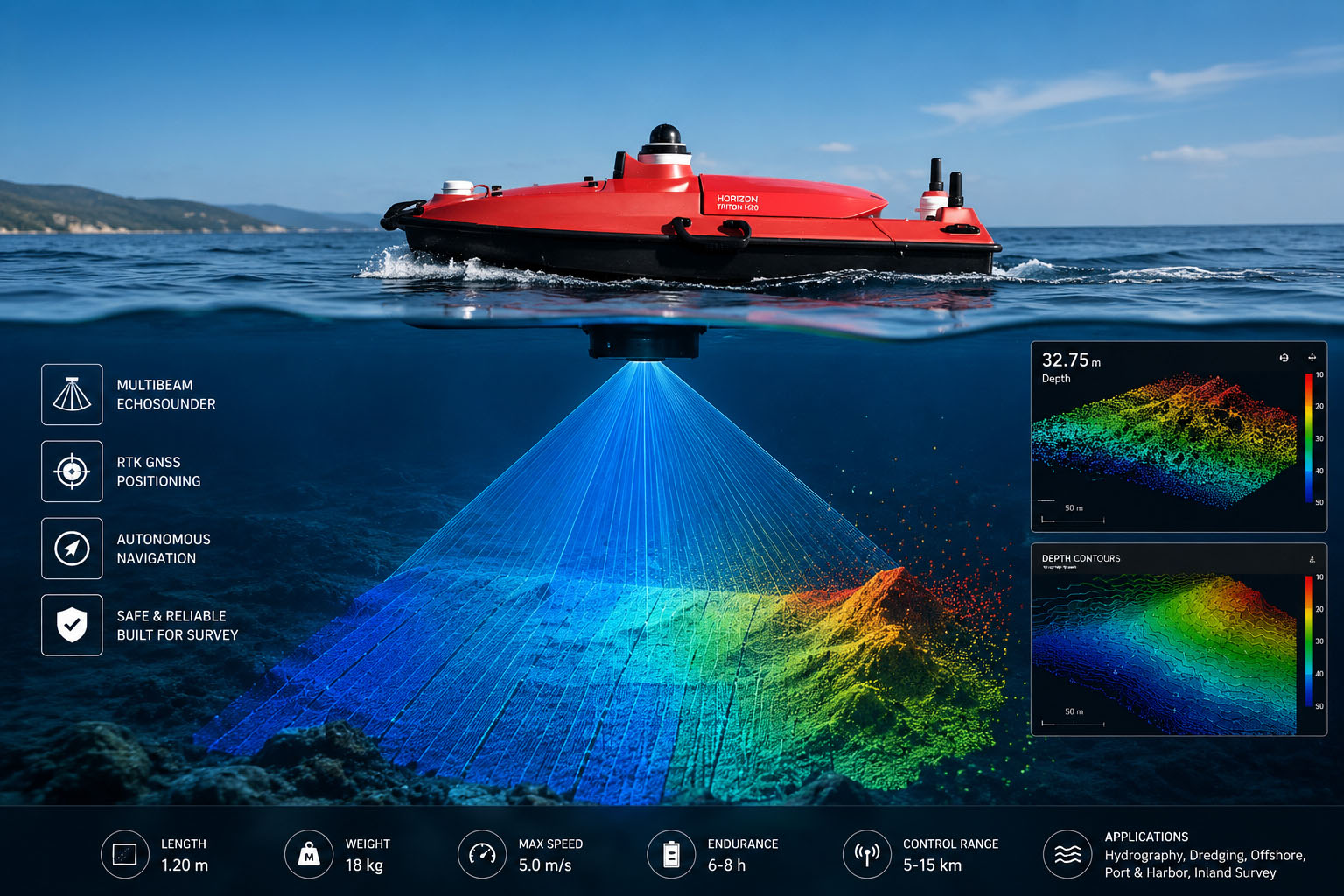

High Performance Multibeam
High-resolution multibeam echosounder for precise 3D bathymetric surveys. Integrated Surface Sound Velocity correction enhances accuracy, while optional LiDAR enables simultaneous mapping of underwater terrain and offshore structures.
- 512 and 1024 beams Multibeam sensor
- Depth Range Detecting up to 150m
- High accuracy Roll/Pitch 0.05 degree
- High accuracy for heading 0.1 degree
- Ping Rate is yup to 60Hz
- Leight weight and low consumption with high integrated system with H20.
RTK positioning solution
- The TRITON H20 USV is equipped with a POS system combining dual multi-frequency GNSS and an IMU sensor for high-accuracy positioning, navigation, and data capture.
- It supports 4G/LTE and NTRIP network RTK corrections, achieving centimeter-level accuracy. The system can receive correction data via internal radio base station or connect directly to CORS networks.
- With dual GNSS antennas, the TRITON H20 delivers improved heading stability and positioning performance for both navigation and data acquisition.
- The system is fully compatible with any RTK solution brand without limitation.
Smart Safety & Autonomous Navigation

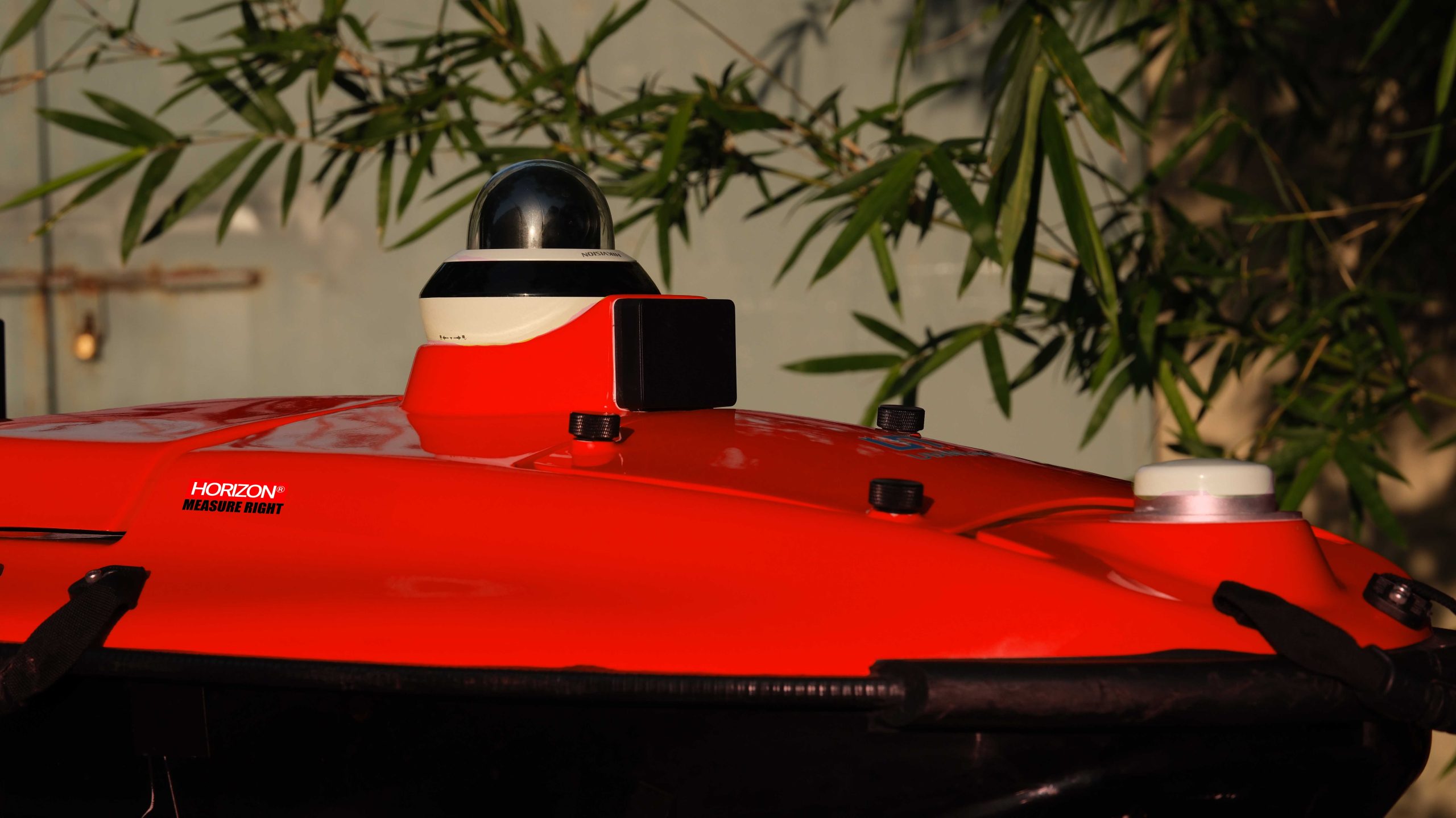

The TRITON H20 is equipped with a 360° day & night camera and a millimeter-wave radar system for real-time obstacle detection and collision avoidance. All monitoring data is displayed on the base station for safe operation.
It can automatically detect obstacles, choose a safe path, or return to its original route when clear. The system also includes shallow-water detection, low-battery auto return-to-home, and fail-safe return in case of communication loss with the controller.
Integrated GNSS, IMU, camera, and radar sensors work together to ensure intelligent, reliable, and secure autonomous navigation.

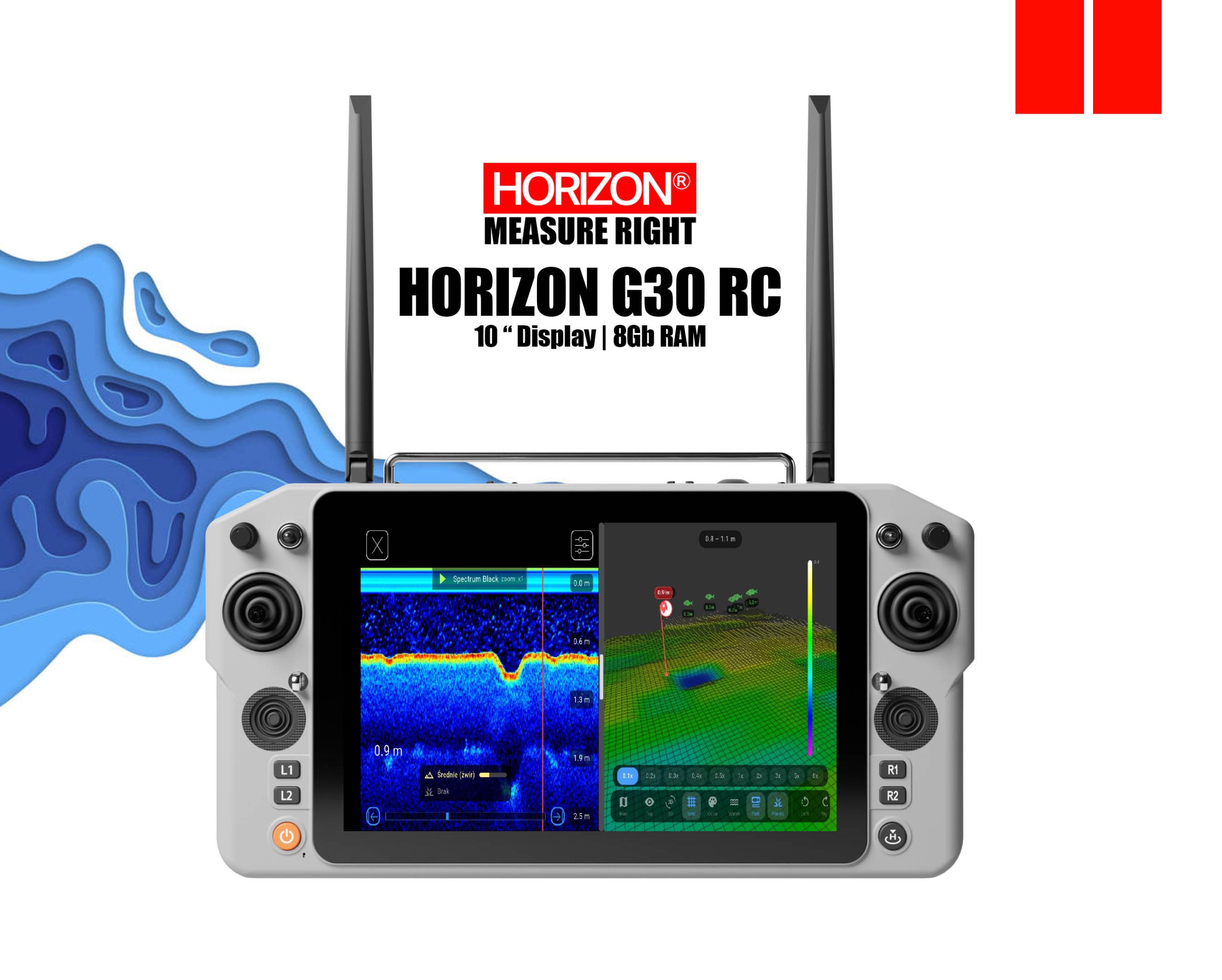

HORIZON G30 Remote Controller
The G30 Remote Controller is a professional control unit designed for operating and monitoring the TRITON USV. Featuring a 10-inch display, 8 GB RAM, and multiple communication options, it provides reliable performance for navigation, mission planning, and real-time vessel control.
Key Features
- 10.1 inch high brightness touchscreen display
- 8 GB RAM for smooth operation
- Built-in SIM card slot for 4G connectivity
- Supports long-range communication with the TRITON USV
- Dual-band wireless communication (2.4 GHz & 5.8 GHz)
- Equipped with Android 14 operating system
- Real-time navigation and mission monitoring
- Reliable remote control of the USV
- User-friendly interface for efficient operation
- Rugged design suitable for field applications
- Seamless integration with the TRITON USV platform
- Stable communication in various operating environments

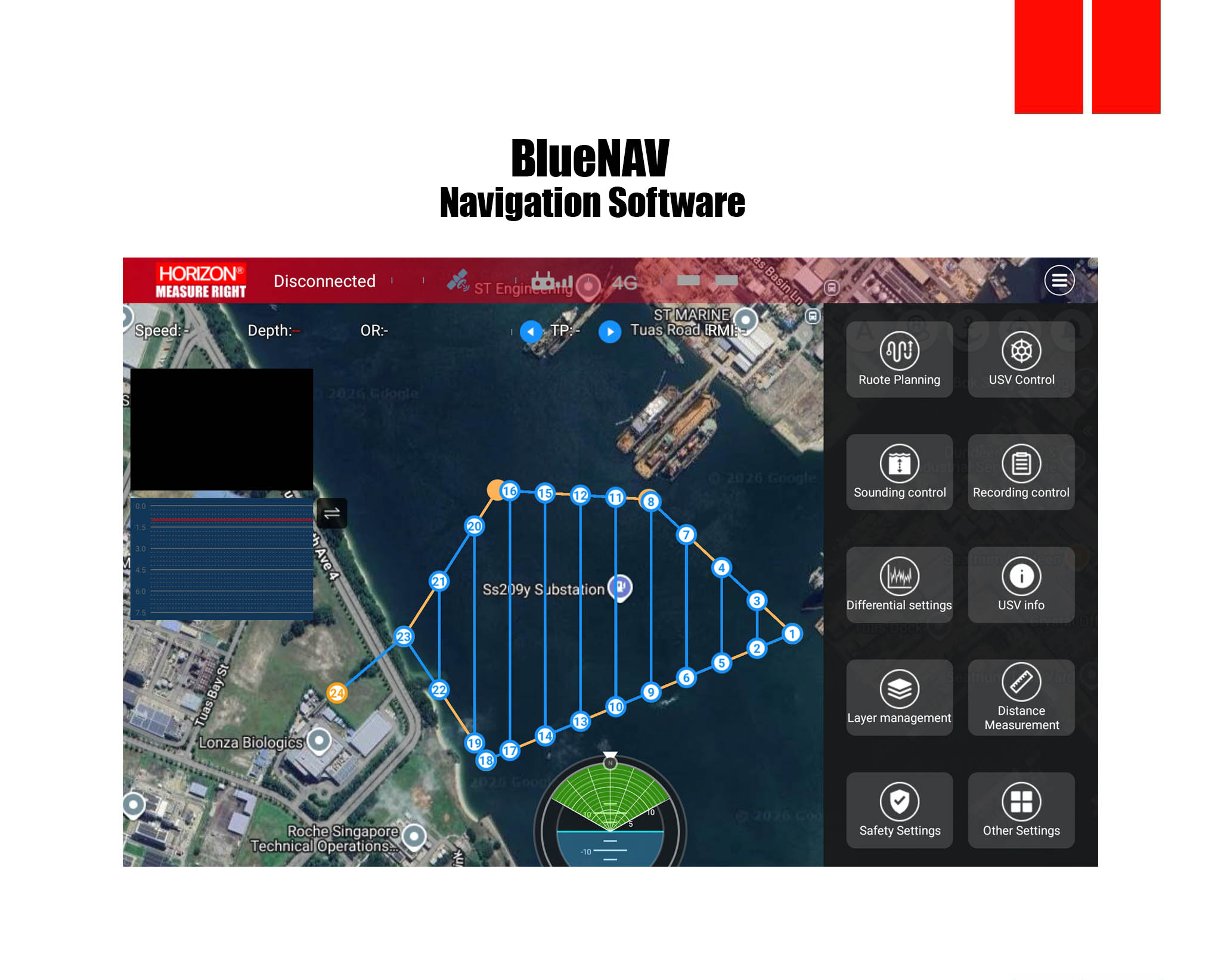

BlueNAV Software
BlueNAV is an all-in-one navigation and post-processing software designed for efficient USV operations. It provides everything needed to control the vessel, plan missions, collect survey data, configure safety settings, and process data directly in the field.
Key Features
- Complete USV navigation and mission control platform
- Connectivity with the USV via 2.4 GHz radio link or 4G network
- Supports a wide range of coordinate systems and map projections
- Manual input of custom coordinate systems and projection parameters
- Integrated payload control with no additional software required
- Route planning and mission setup tools
- Import survey areas using KML and DXF files
- Real-time echo sounder data display and monitoring
- Live 360° day and night camera video streaming
- Configurable safety settings, including Return-to-Home (RTH) functions
- Automatic and manual data processing with one-click operation
- Export survey data in customizable output formats
